Mission Overview Page
CONTENTS
What is the mission overview page?
How to access the overview page
What is the mission overview page?
The mission overview page provides a centralized hub for all information about individual Missions that are currently running or have been stopped. From the overview page, Mission builders can:
- Navigate to Mission info, alert settings, and Mission schedule information
- Edit or stop a Mission
- Export mission response data
- View or hide Mission revisions
-
Filter and analyze reports on mission response data
How to access the new overview page
To access the new overview page:

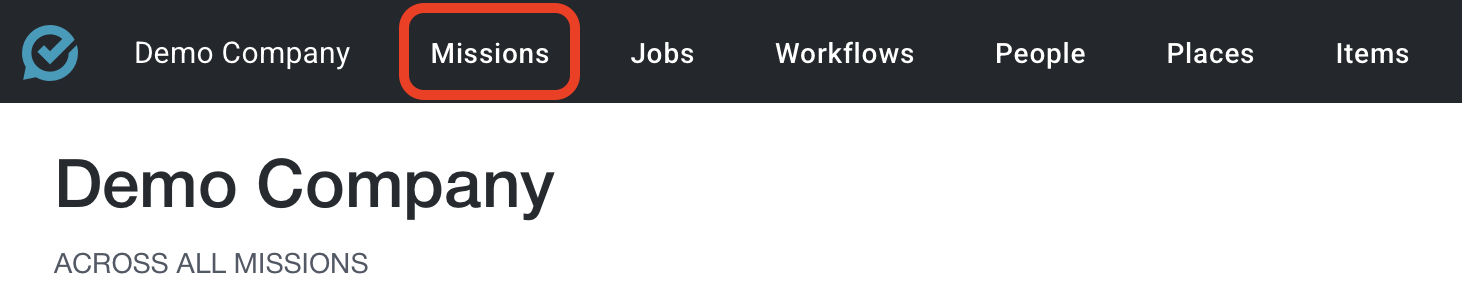

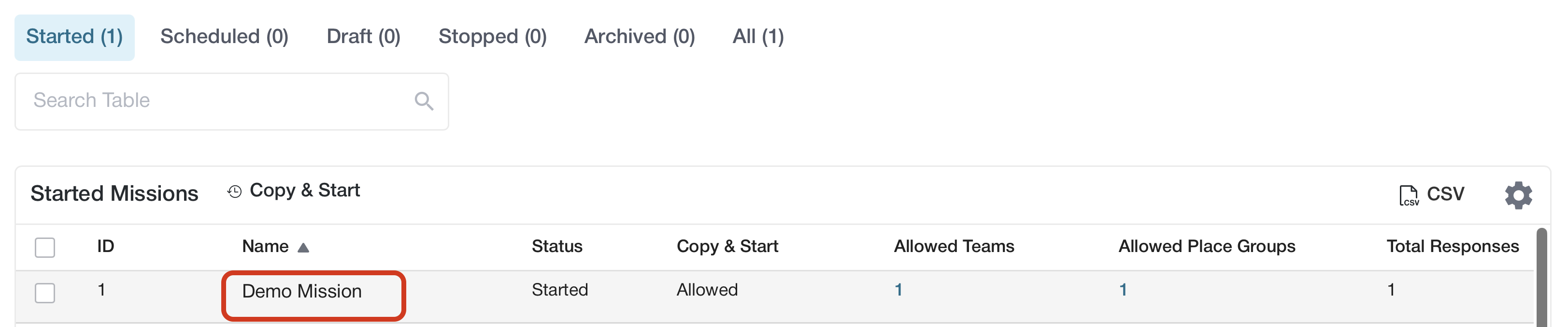

- Navigate to Missions in the dashboard’s top-line navigation bar
- Click any Mission name, whether started or stopped, and the Overview page will open.
Overview page navigation

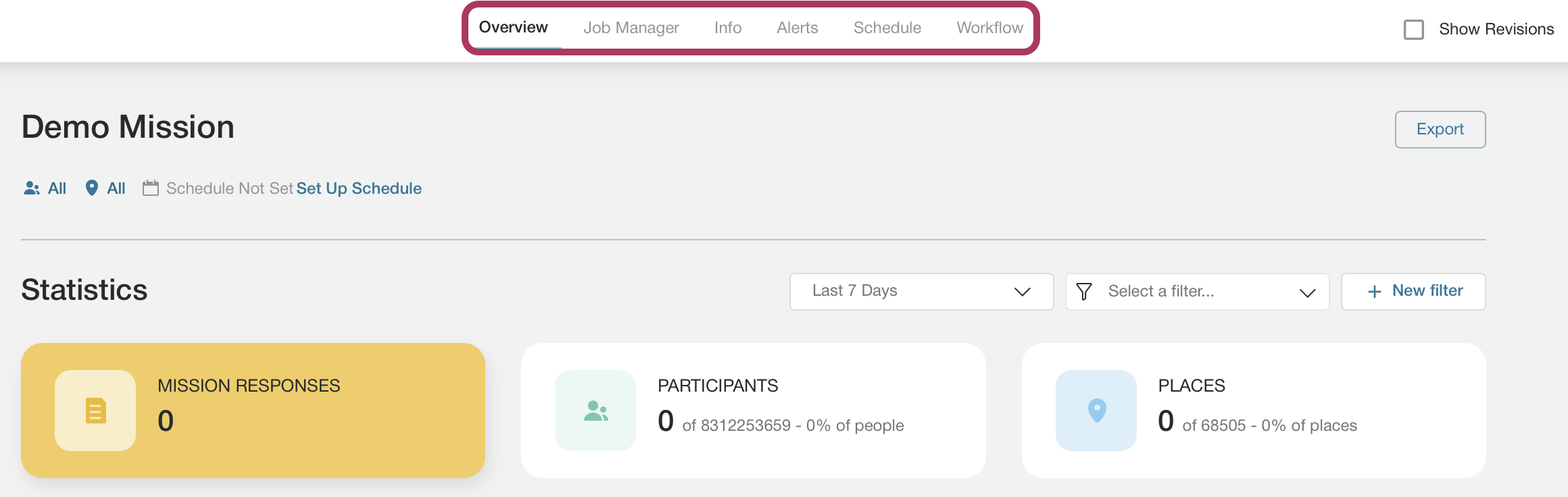

The new overview page has a navigation bar that allows mission builders to easily access mission info, alerts, and schedule information.

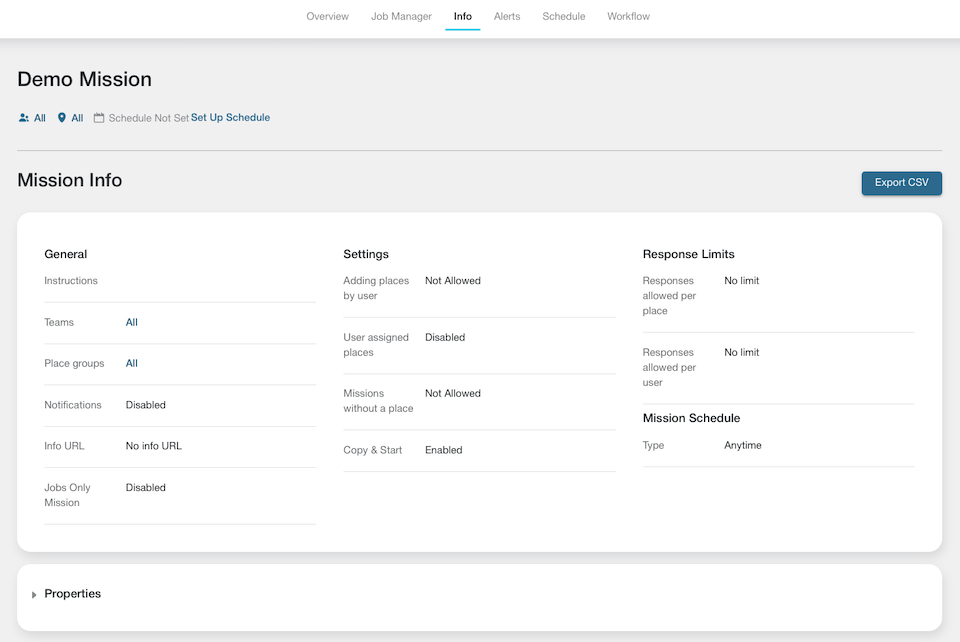

- The Info tab displays mission settings, properties, and structure.

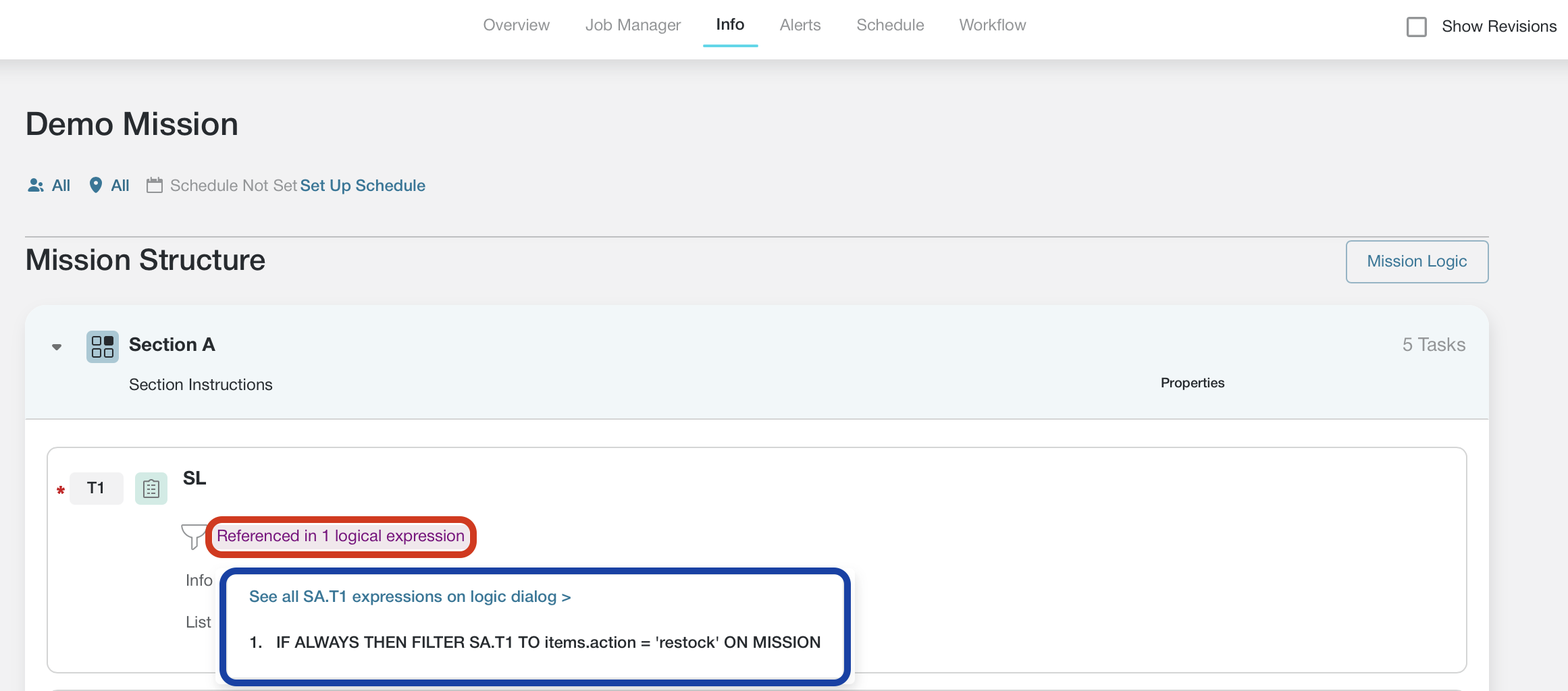

- If a mission has advanced logic rules applied, the Mission Structure section of the info tab highlights tasks that are tied to advanced logic. There are two ways to view advanced logic expressions from a Mission’s info tab:
- Text will appear on tasks that are referenced in logic expressions. Hovering over this text will display a pop-up with the full advanced logic rule(s) associated with the task.

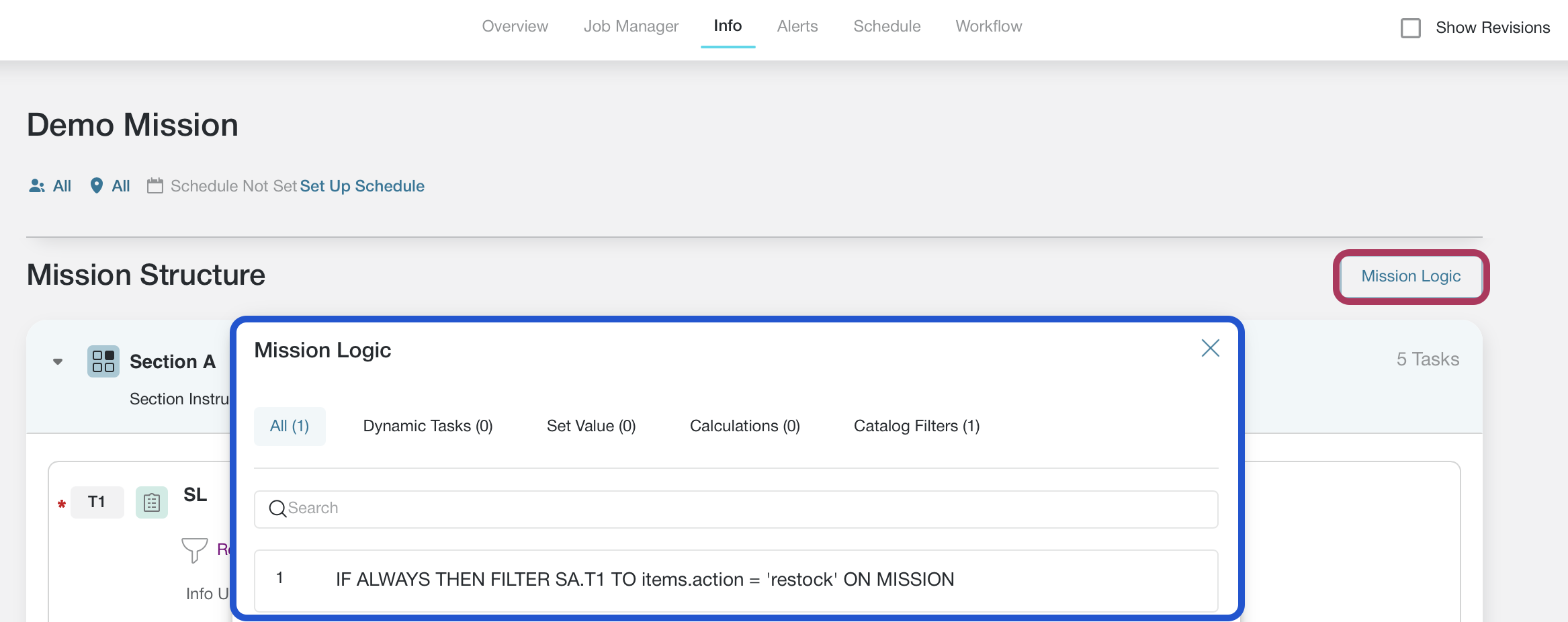

- To see all of a Mission’s advanced logic expressions, click the Mission Logic button located at the top right of the Mission Structure section. A movable box will appear that contains all advanced logic rules by type.

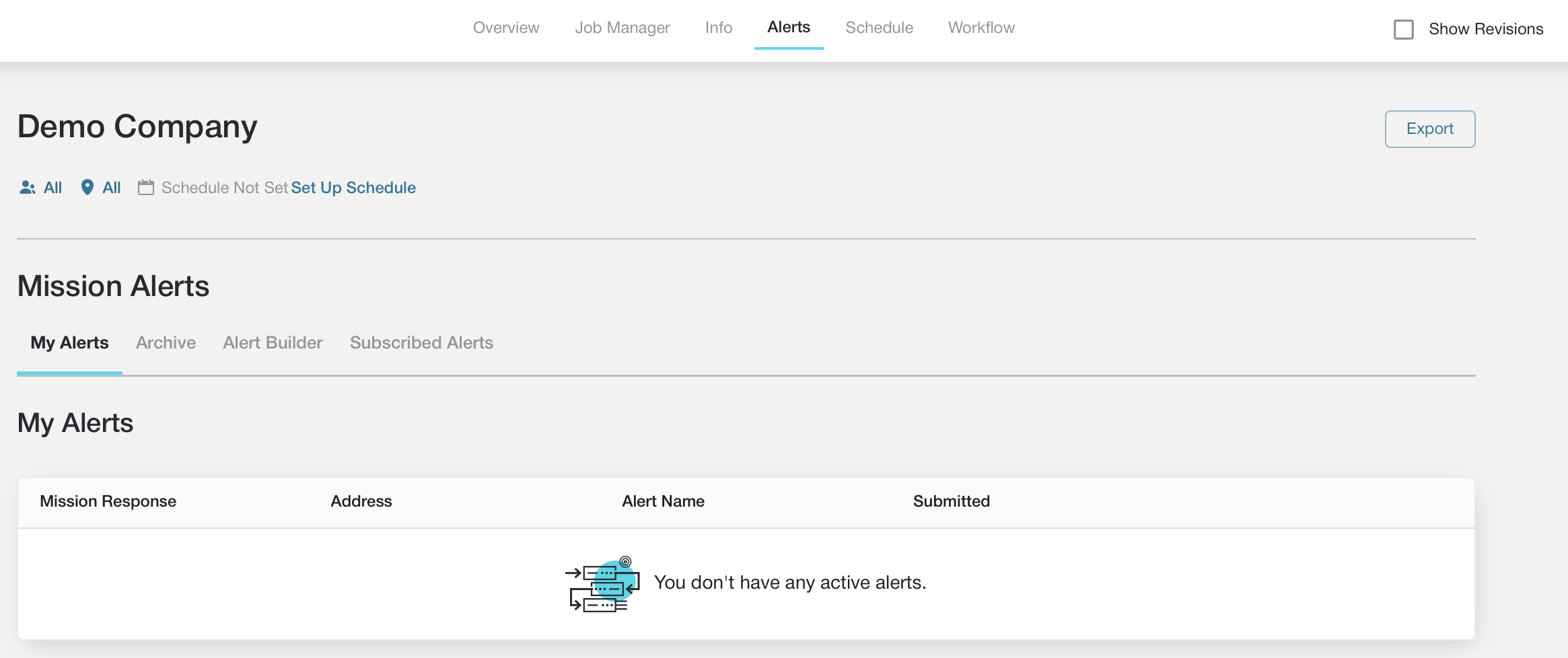

- The Alerts tab displays all active and archived alerts associated with the Mission. There is also an alert builder where new email alerts for the mission can be configured. For more information on alerts, click here.

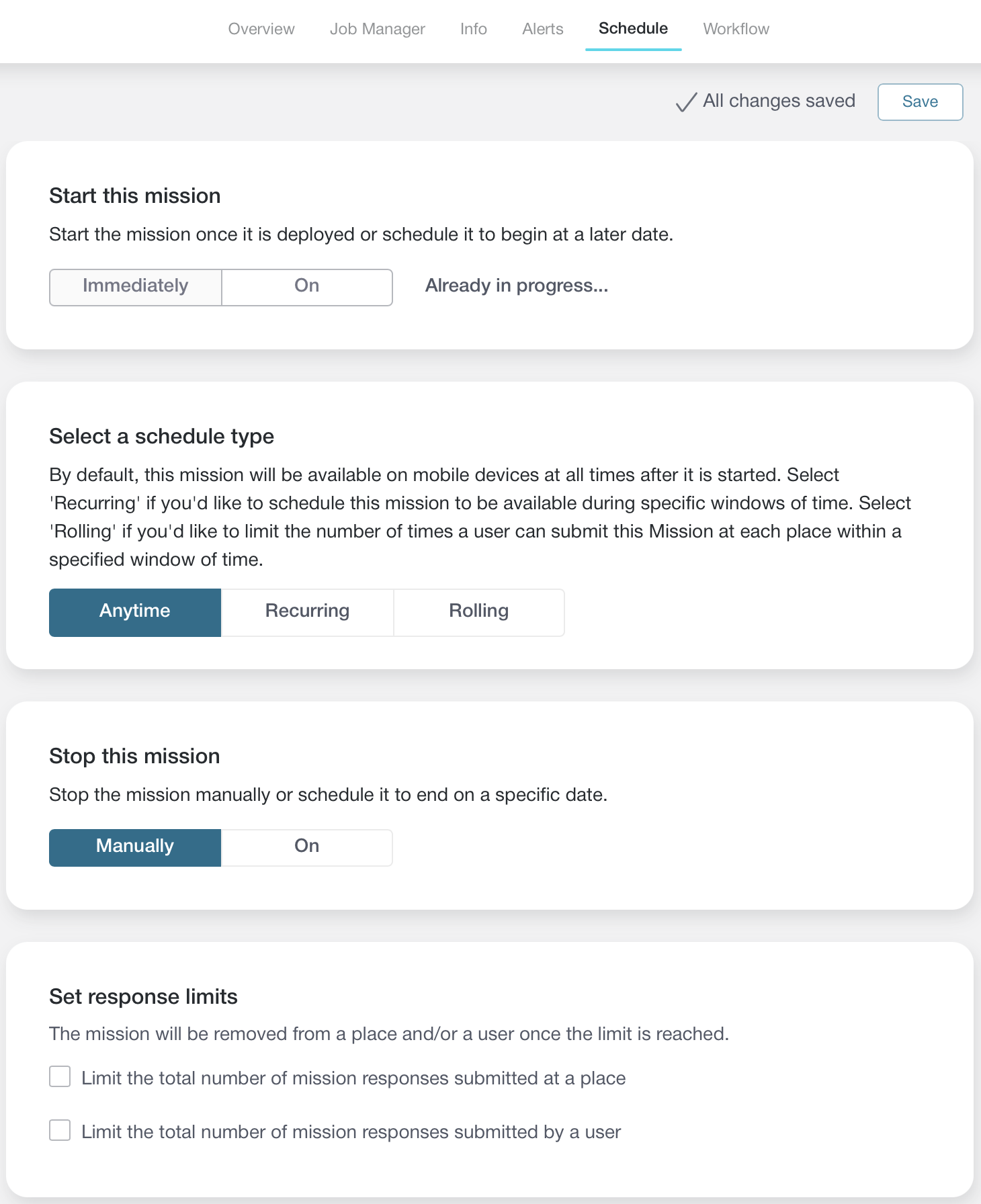

- The Schedule tab includes all information about the Mission’s current schedule and allows it to be updated. For more information on Mission schedules, click here.

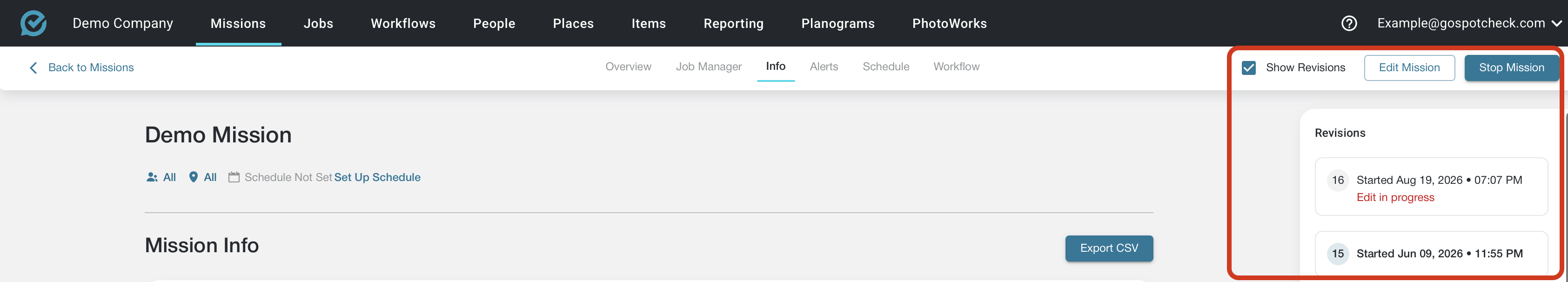

This top-line navigation also includes a checkbox to show/hide Mission revisions, as well as buttons to edit or stop a Mission.
Export data

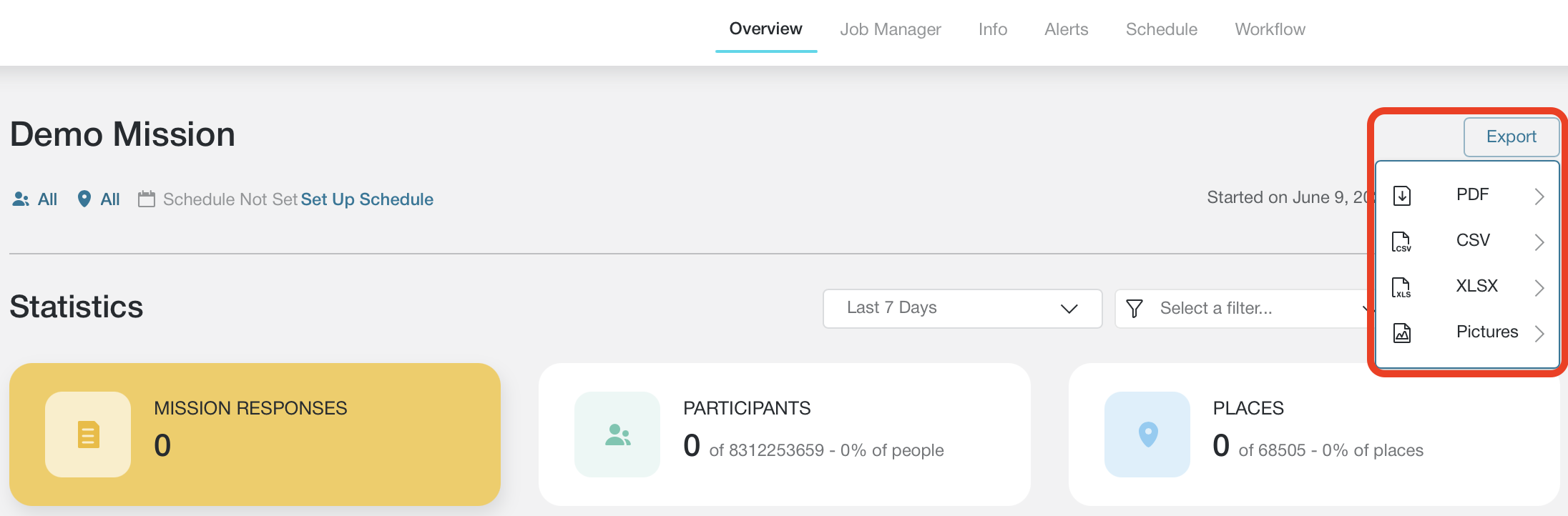

To export mission response data, click the Export button and select a format. Supported formats include:
- PDF: This will generate a PDF of the reports available on the mission overview page and does not include a breakdown of individual mission responses.
- CSV: This will generate a .csv file of either mission response data or task response data. For a full breakdown of how each individual task was answered, select task responses from the list of .csv export options.
- XLSX: This will generate a .xlsx file of either mission response data or task response data. For a full breakdown of how each individual task was answered, select task responses from the list of .xlsx export options.
- Pictures: This will generate a .zip file of all images submitted via mission responses.
Filtering data
The data reported on the mission overview page can be filtered by date, user, team, place, place group, task, or advanced information.
To filter mission response data by date:

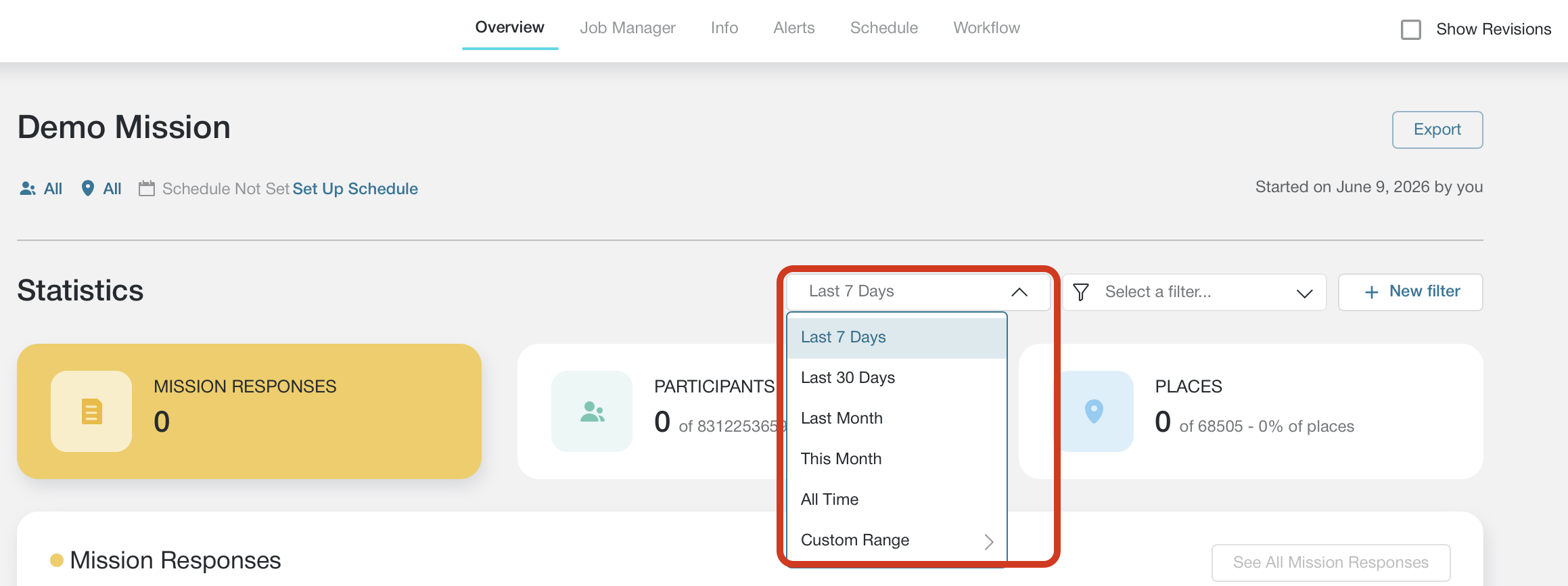

- Navigate to the date range dropdown and select from the last 7 days, last 30 days, last month, this month, all time, or define a custom date range.
To filter by user, team, place, place group, task, or advanced information:

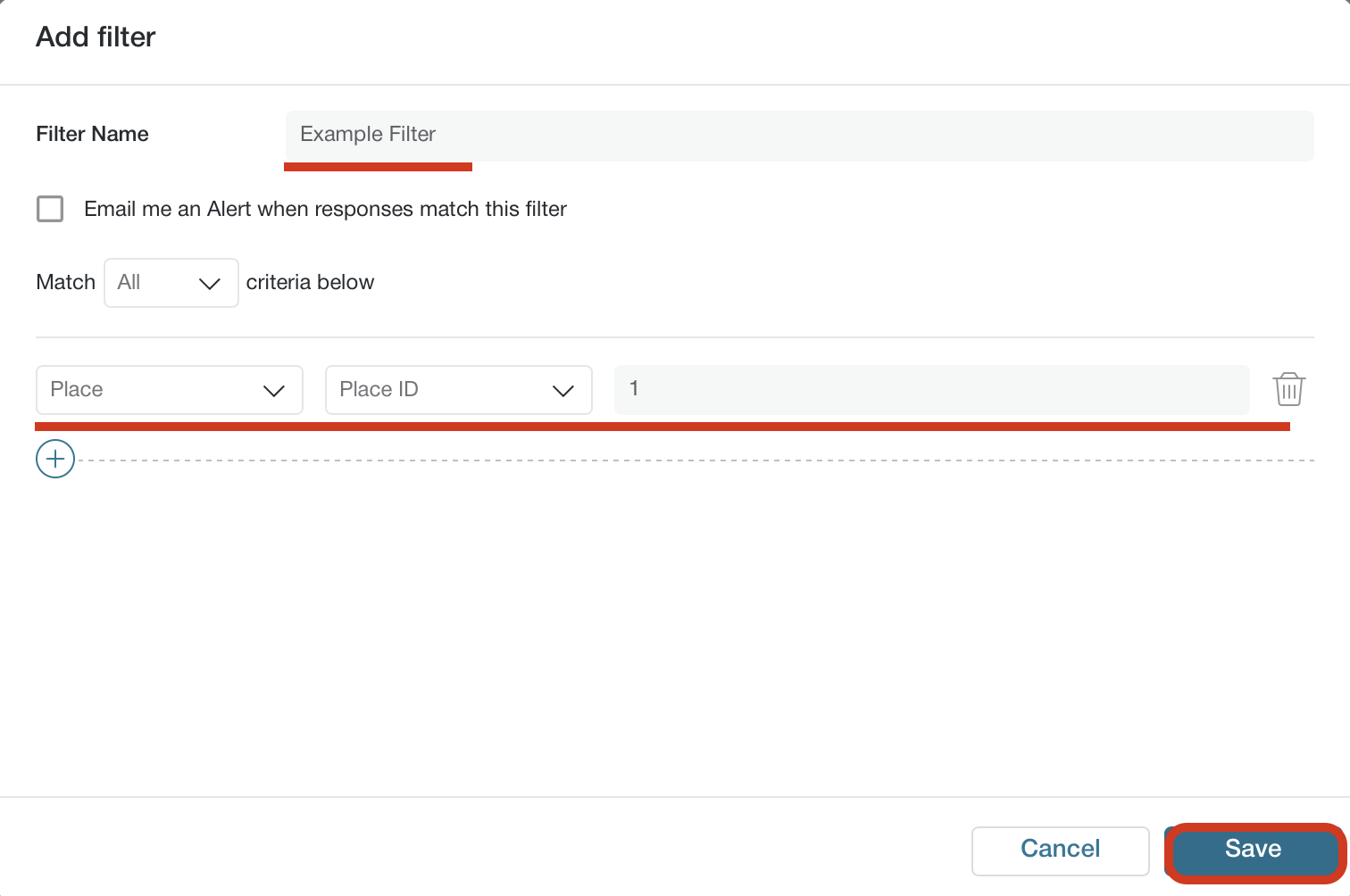

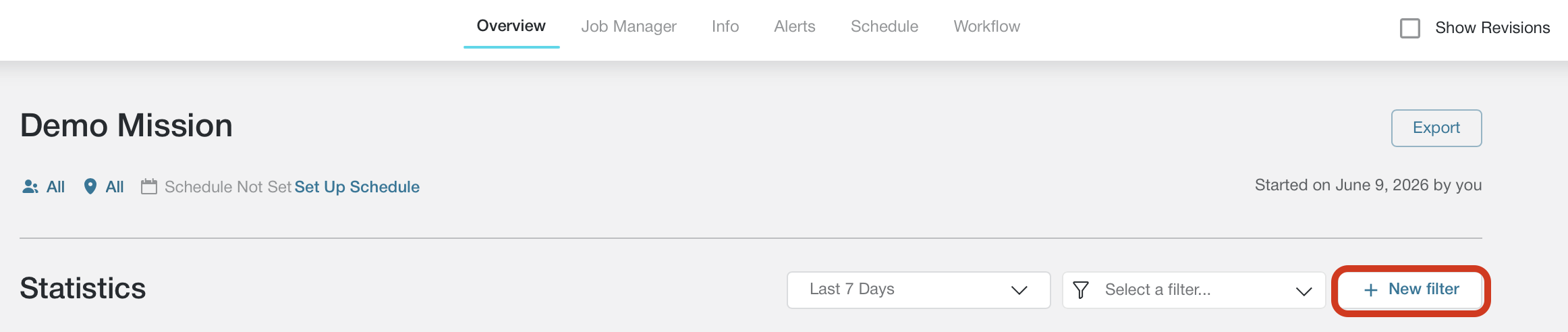

- Click the + New Filter button.
- In the new filter pop-up, name the filter, select the criteria, and click Save.

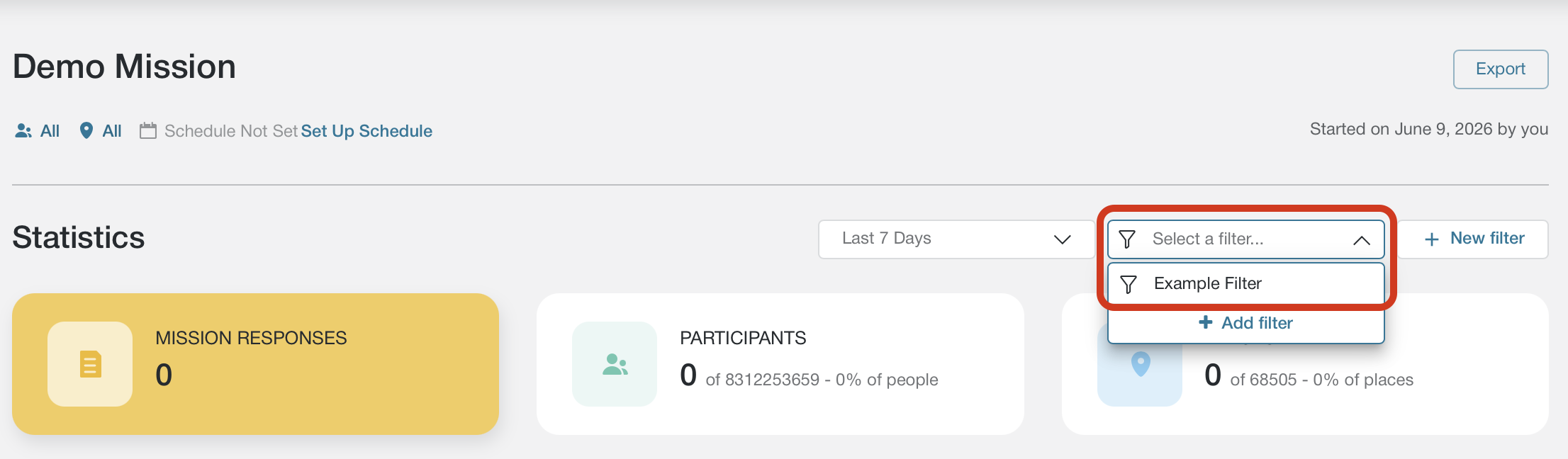

- Once saved, the filter will be available for selection in the filter dropdown.
Read more on filtering mission response data here.
Mission overview reports
Mission overview reports are divided into two sections: Statistics and Task Summary.
Statistics
The statistics reports are broken into three tabs: Mission Responses, Participants, and Places.

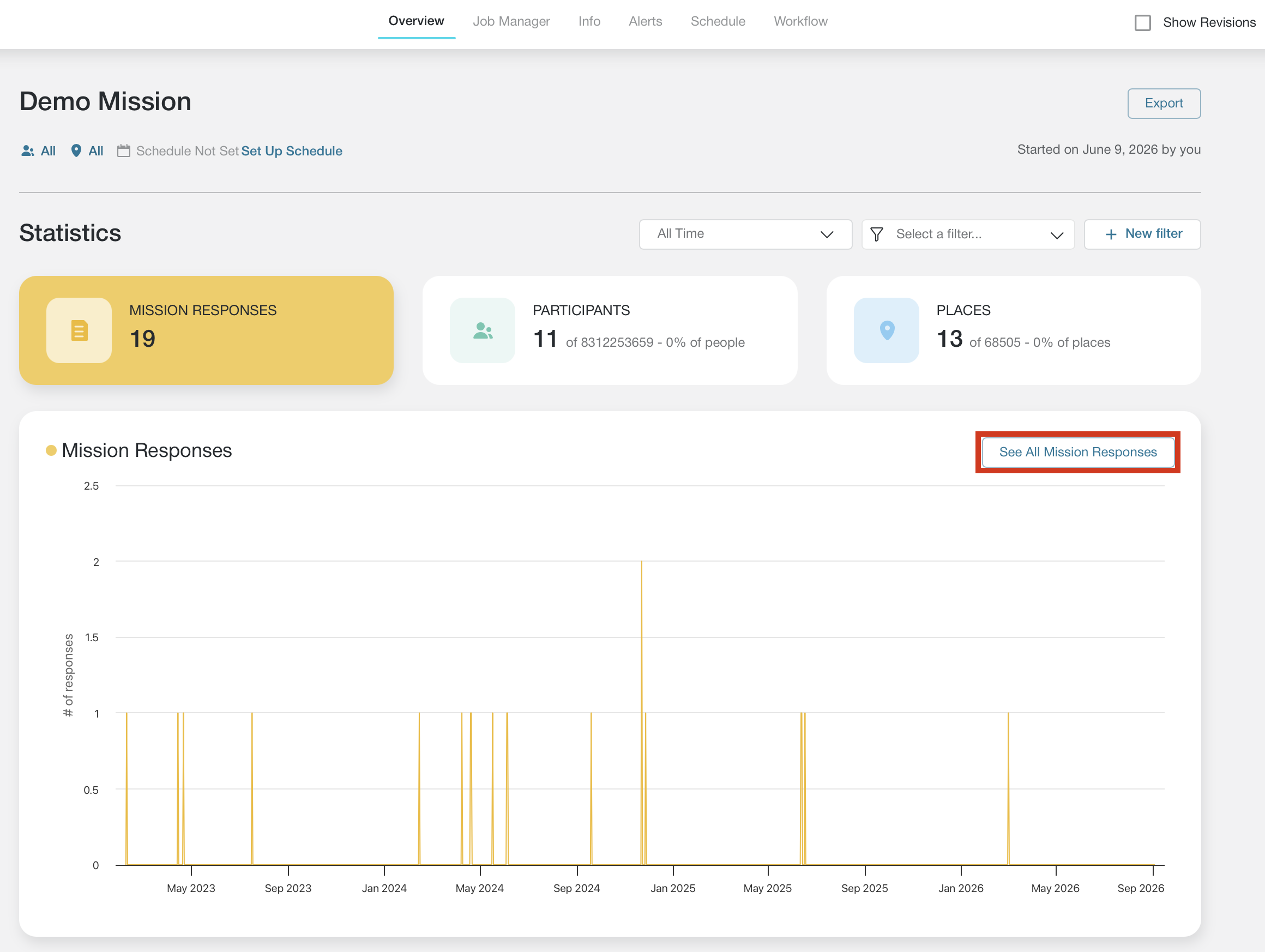

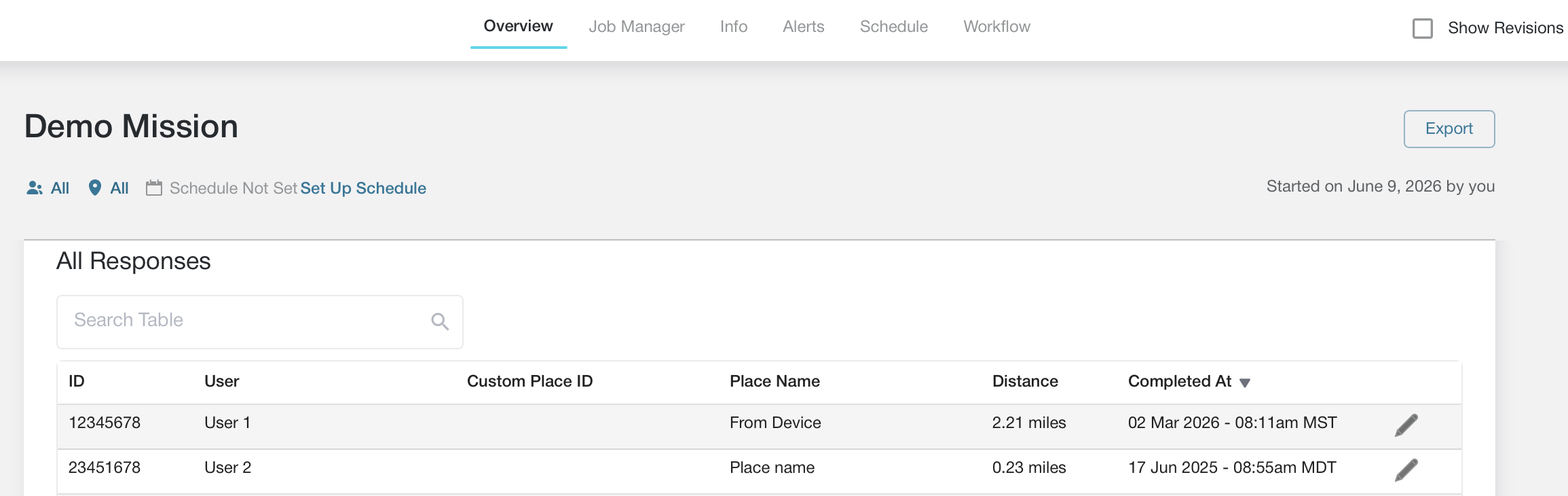

- The mission responses tab displays an area chart that tracks the total count of responses submitted on each day within the filtered time frame. To view a list of all responses submitted during the filtered timeframe, click See All Mission Responses. A searchable table listing individual mission responses will appear below the area chart.

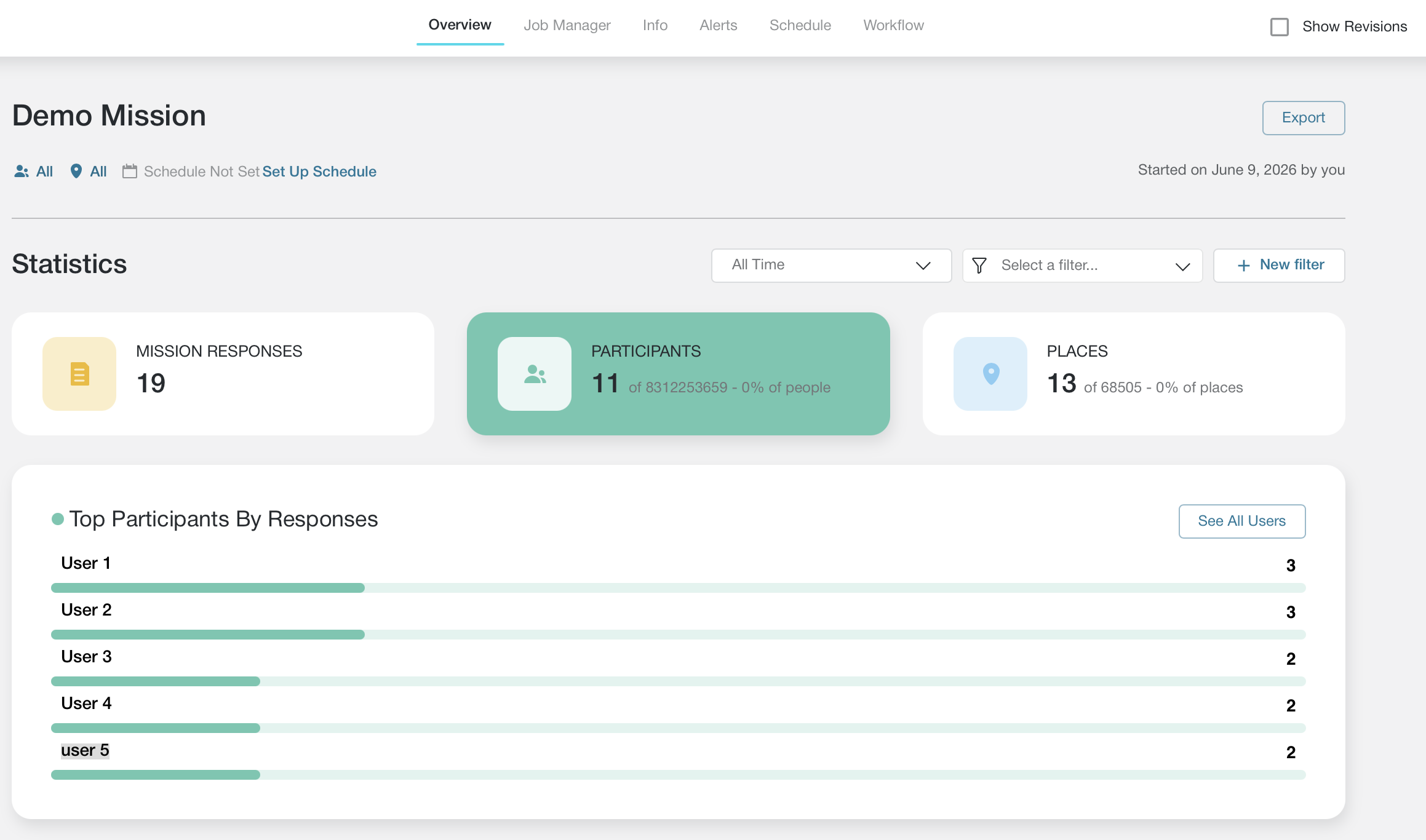

- The participants tab displays a bar chart with a list of users who have submitted mission responses within the filtered date range. The chart shows the total count of responses per user and automatically sorts from highest to lowest.

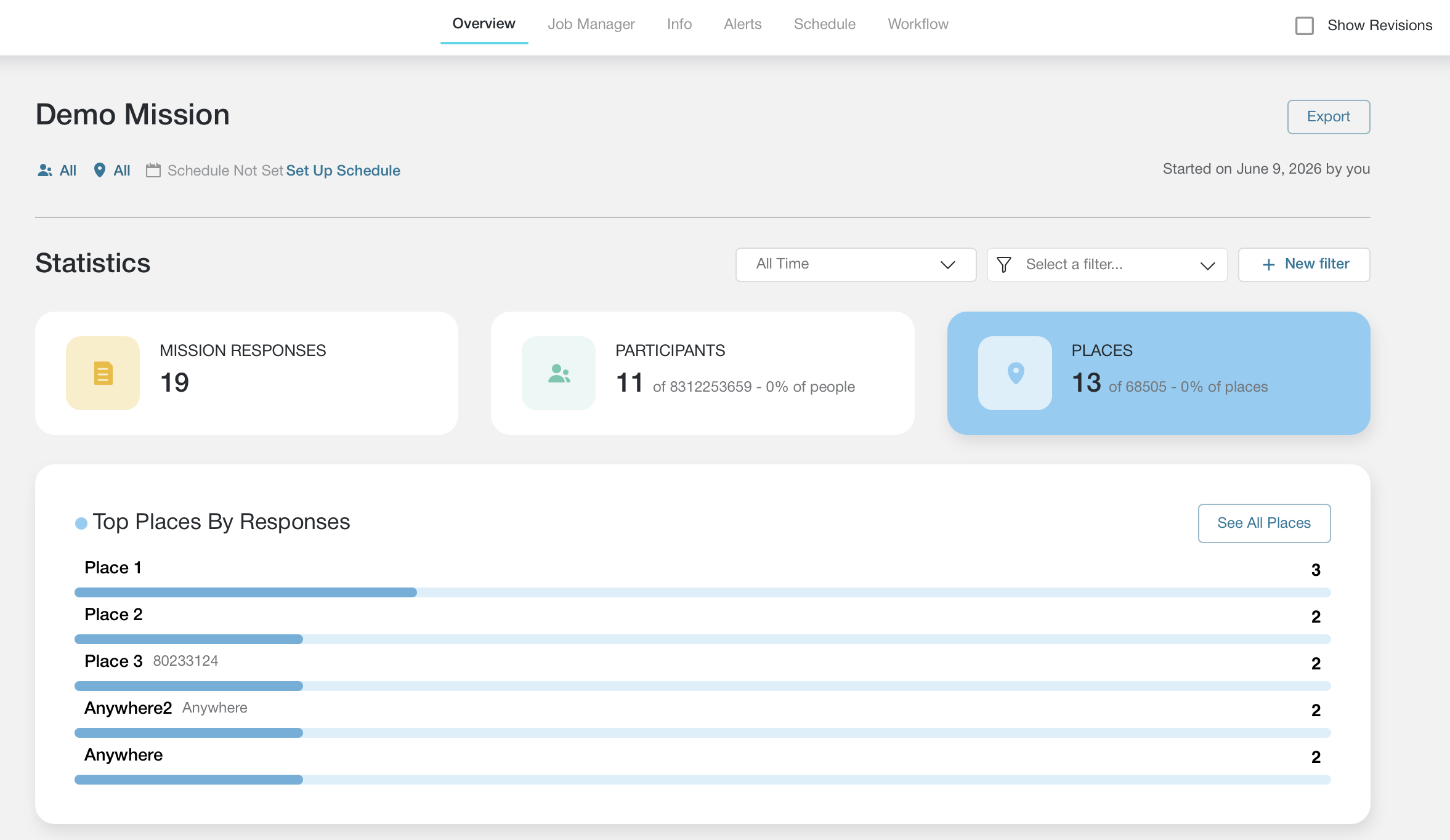

- The places tab displays a bar chart with a list of places where mission responses have been submitted within the filtered date range. The chart shows the total count of responses per place and automatically sorts from highest to lowest.

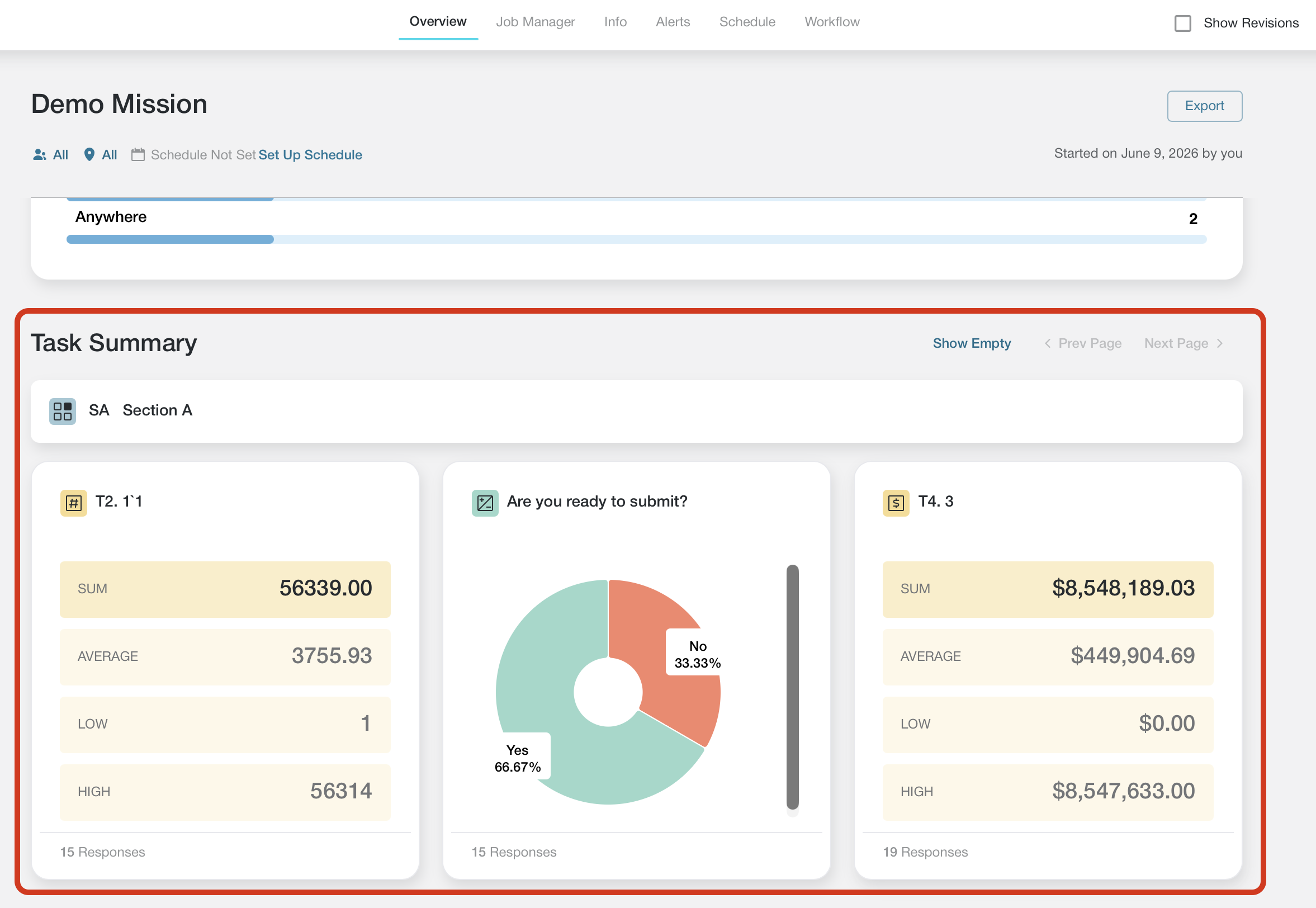

Task Summary
The task summary section includes a report for each task in the mission. These reports aggregate mission response data within the filtered timeframe to help teams quickly analyze task responses.
For more information on how each individual task type is reported, click here.
Read more about advanced logic here.
