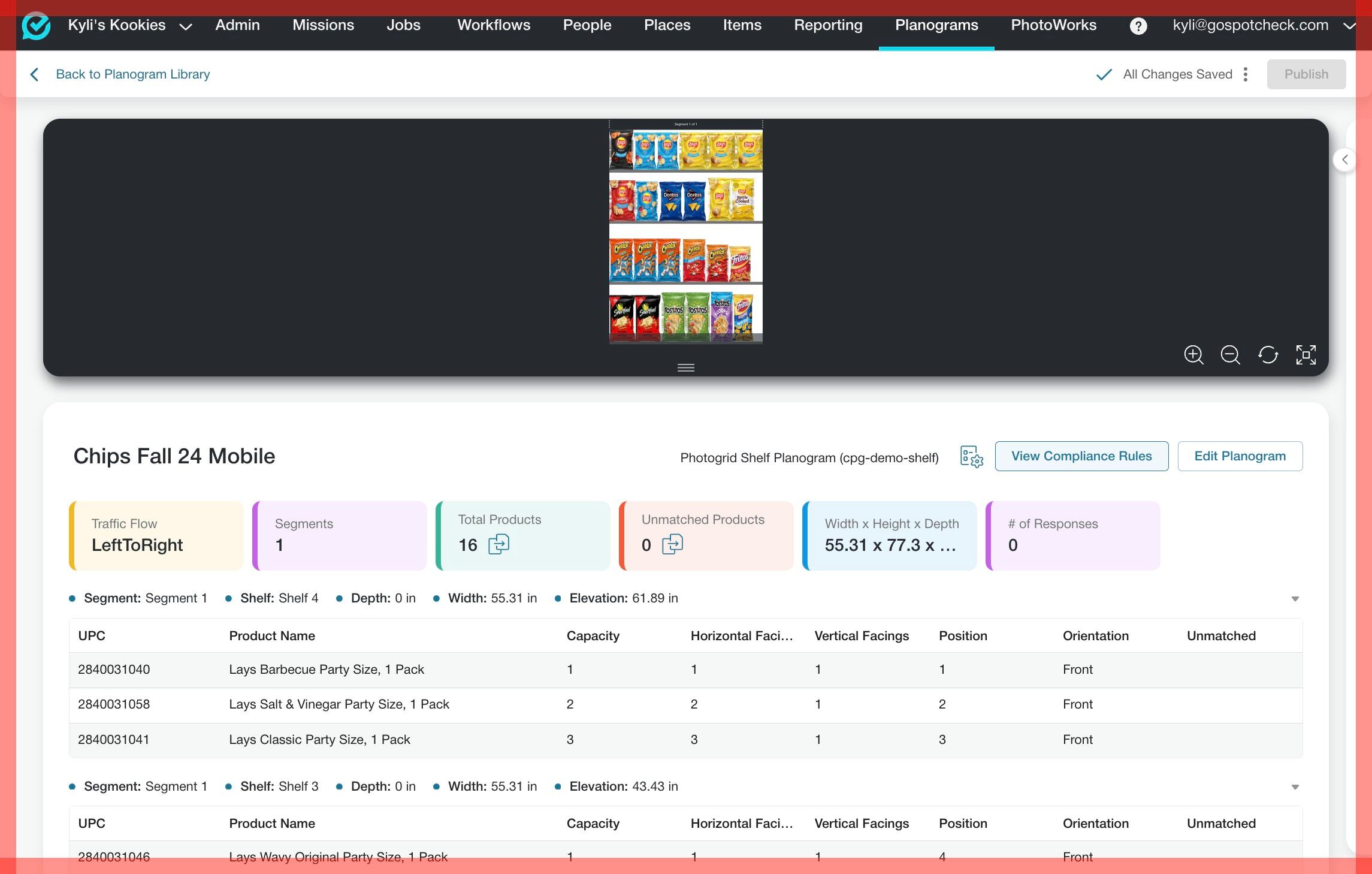

2. Click 'View Compliance Rules' to switch to scoring mode

3. By default, Planogram Compliance scoring assumes that the recognized product must match all the product attributes defined when products are mapped via initial ingestion of a Space Planning file or through the use of the Reconciliation dialog.

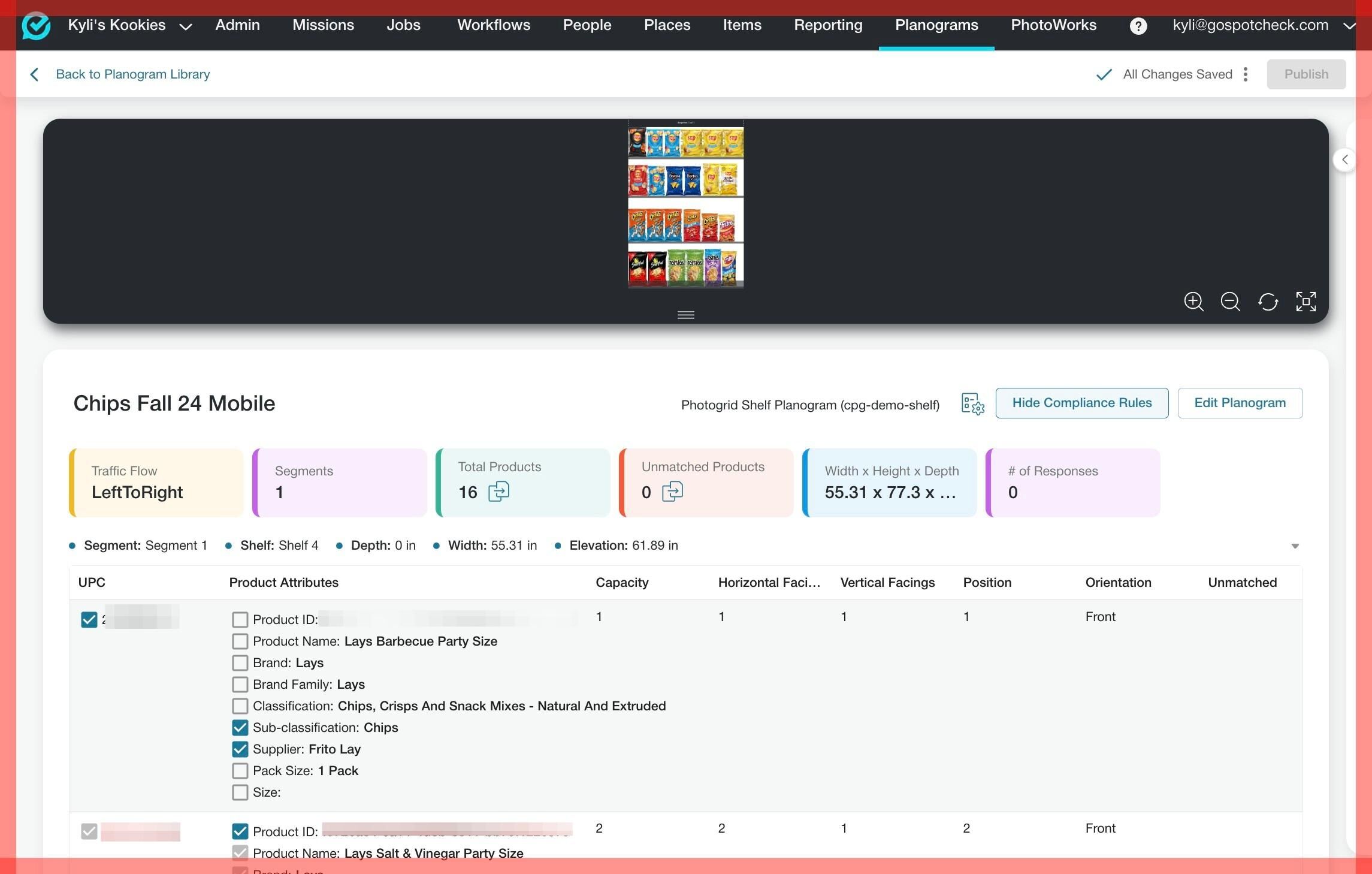

4. Compliance scoring rules allow you to adjust this to measure compliance based on a match to one or more given attribute values from the Products expected in the plan.

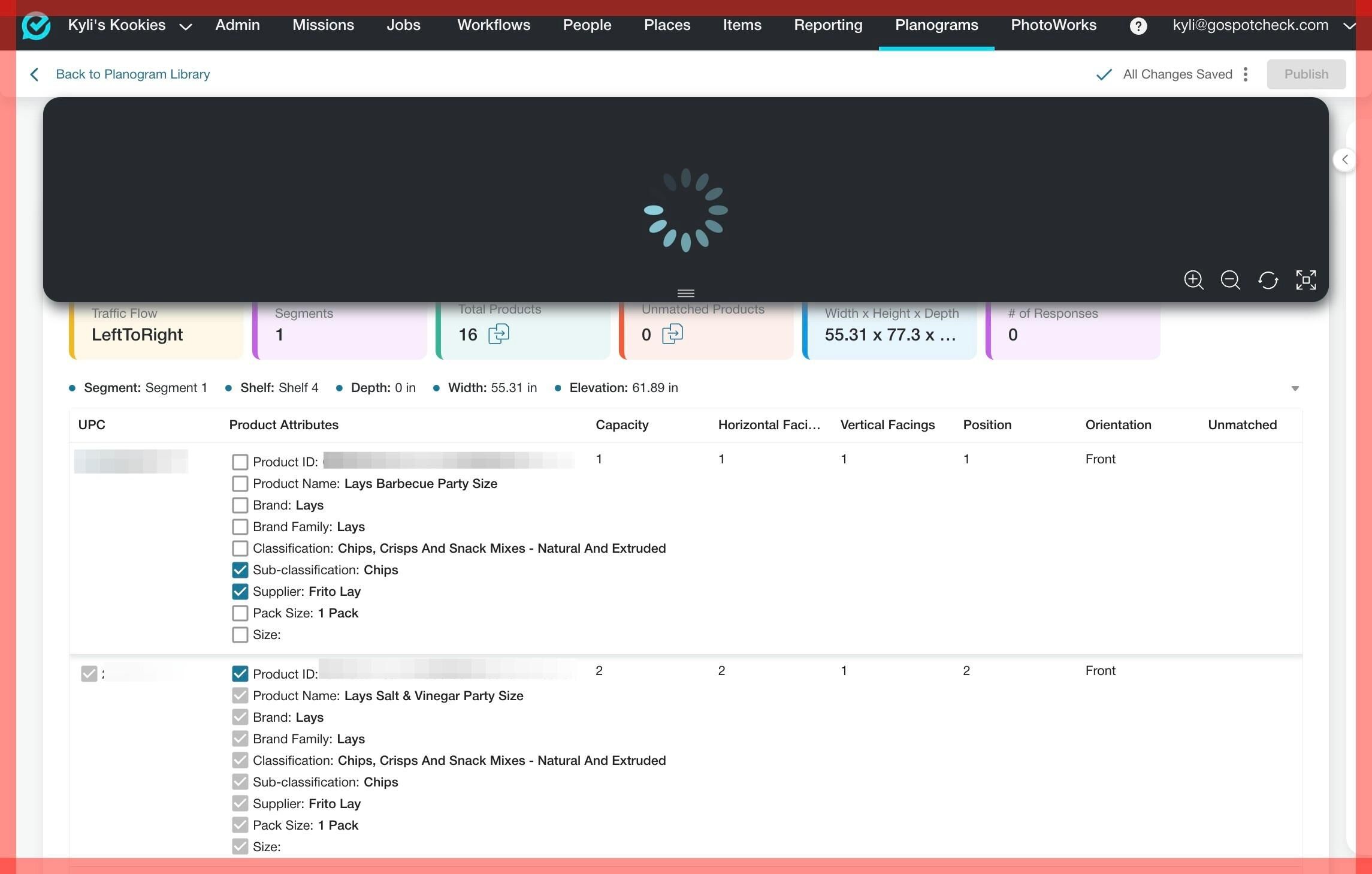

For example, the selections made in the first row of the image below say that if the product recognized in this position has a sub-classification of 'Chips' and a 'Supplier' of 'Frito Lay,' then we will mark it as compliant.

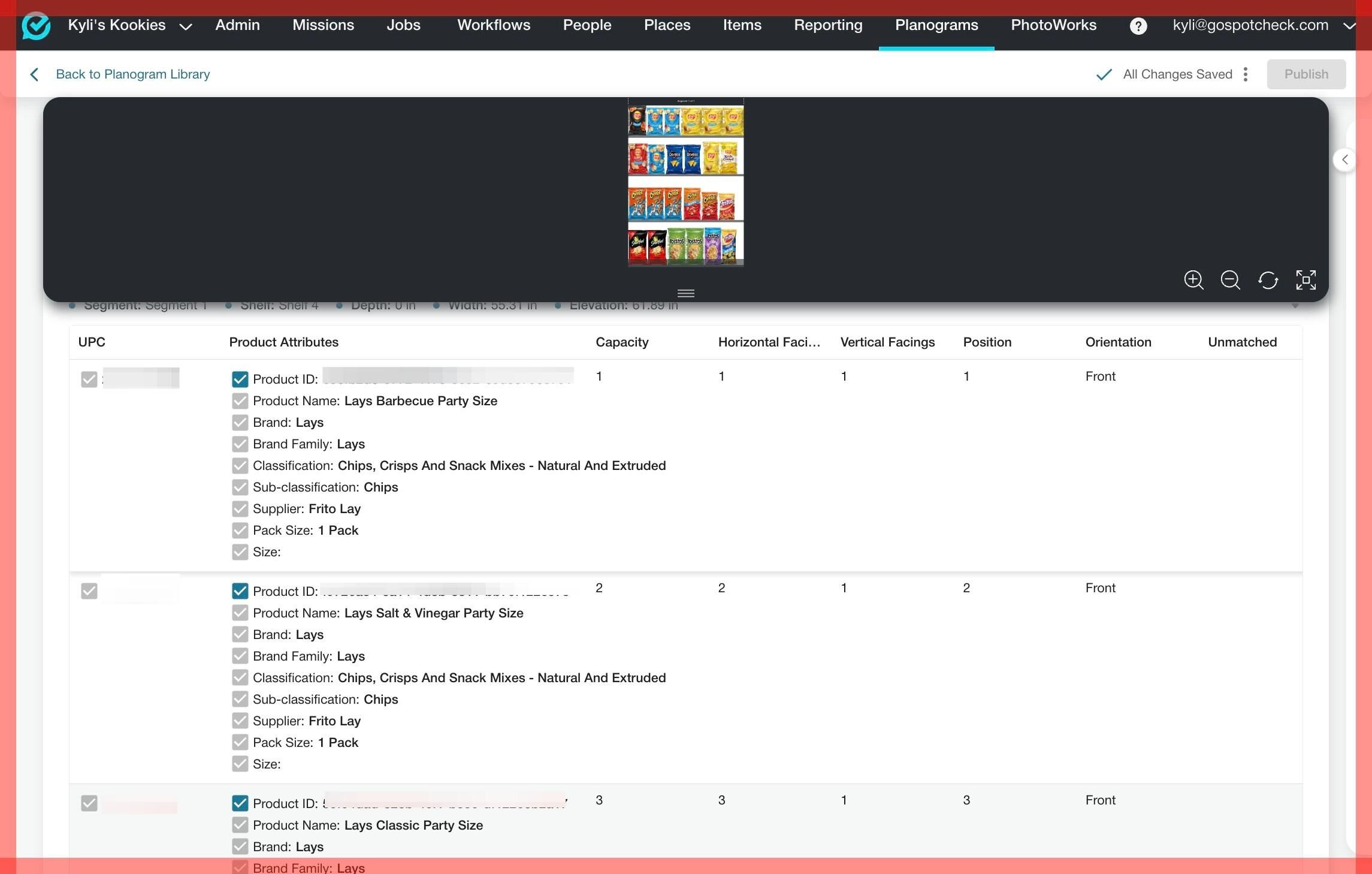

5. Adjustments are saved automatically. Click 'Hide Compliance Rules' to exit scoring mode.
