Viewing your Planograms

Note: Planogram Compliance is available as an add-on to our Image Recognition feature set. Reach out to your Account Manager to learn more.

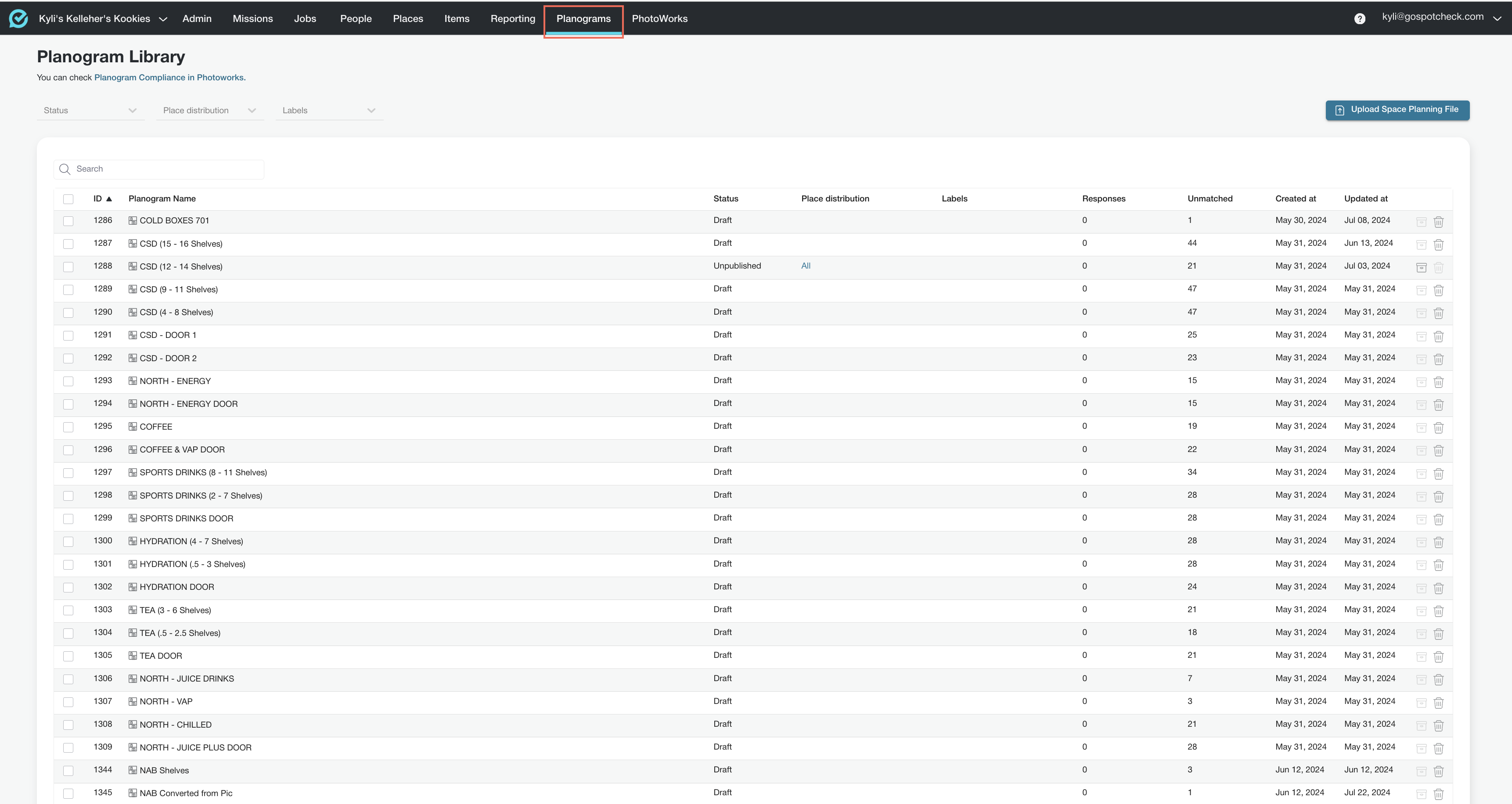

You can view a list of all Planograms that have been uploaded to GoSpotCheck by clicking on the Planograms tab in the Web Application to navigate to the Planogram Library.

All uploaded Space Planning files will be listed in this view. Filters can be applied to scope the list of Planograms. Users can also sort the results in the list by clicking on the ID, Planogram Name, Status, Responses, Unmatched, Created At, or Updated At column headers.

Available Actions

• Delete: This action will permanently delete a planogram record in GoSpotCheck. Available for Draft status planograms only.
• Copy: This action will create a Copy of the selected planogram. Copied planograms will be created and named 'Copy of [existing planogram name]' and will be available in a Draft status.
• Archive: This action will archive a planogram in the Web Application and remove any related images or Compliance results from Photoworks.
• Restore: This action will restore an archived planogram to an Unpublished status. Any related images or Compliance results will be available in Photoworks once the planogram is restored.

Selecting any Planogram row will open that Planogram's Planogram Manager page.
